AO-spine Thoracolumbar Injuries

A: Compression

notion image

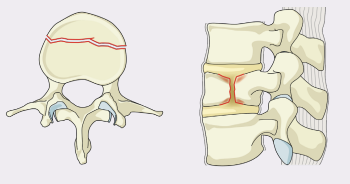

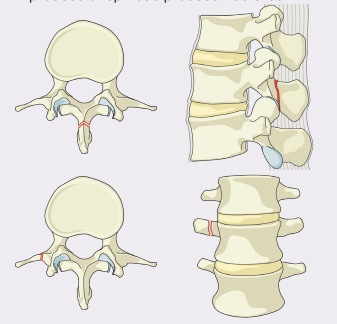

A0: Minor, nonstructural fractures

do not compromise integrity of spinal column
e.g. TP or spinous process fracture
Transverse Process Fracture

notion image

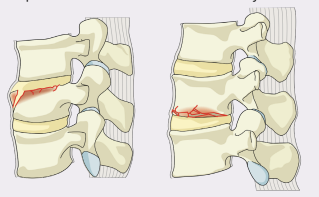

A1: Wedge-Compression Fracture

single endplate, no involvement of posterior wall of VB
Wedge-Compression Fractures
notion image

A2: Split Fracture


notion image

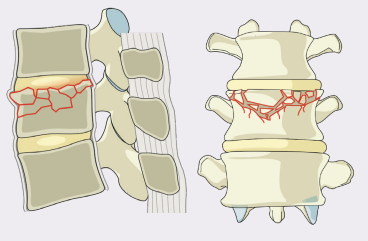

A3: Incomplete Burst

  • no involvement of posterior wall
  • 1 endplate fx
Burst Fracture
notion image

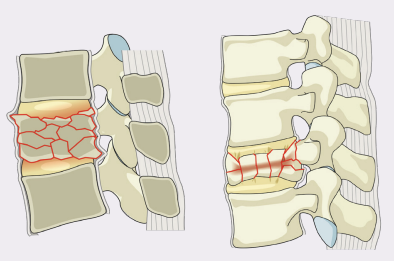

A4: Complete burst fracture

  • no involvement of posterior wall
  • 2 endplate fractures
Burst Fracture

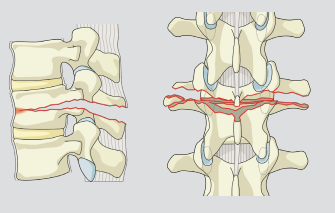

B: Distraction Injuries

notion image
notion image

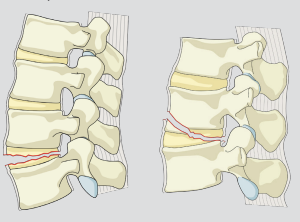

Chance Fracture Fractures (Flexion-Distraction)

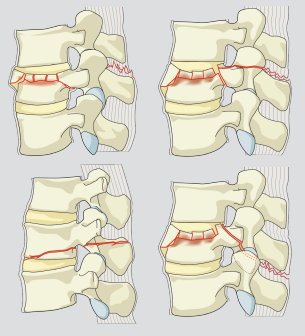

Chance Fractures (AO B1/B2)
B1: posterior tension band failure
B2: posterior tension band + bone/ligamentous failure
notion image

B3: Hyperextension





C: Translation
